Philips Fluoroscopy 7000 R-CombiDiagnost R90 DRF (Digital radiography and remote)

Description

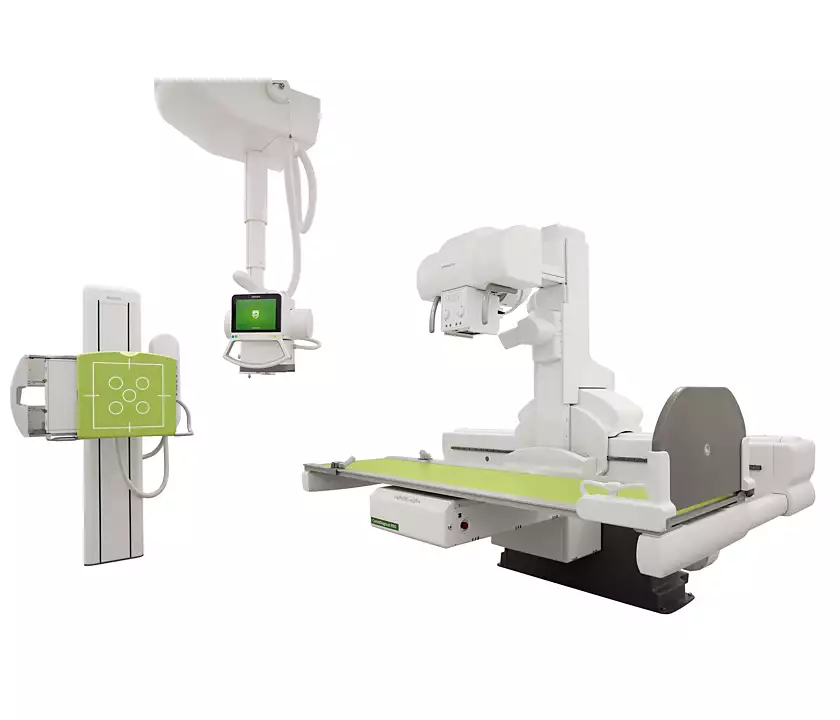

CombiDiagnost R90 is a remote controlled fluoroscopy system in combination with high-end digital radiography, designed to improve room utilization in a cost effective manner. A fully digital workflow, UNIQUE image quality and excellent dose management make the versatile system suitable for a wide range of examinations from pediatric to bariatric imaging.

Features

2-in-1 system – High end radiography and fluoroscopy

Philips CombiDiagnost R90 premium cross-functional system is a true all around performer. Applications include chest, spine, upper and lower extremities, skull, as well as gastro-intestinal exams, arthrography, venography, lymphography, myelography and Digital Subtraction Angiography (DSA).

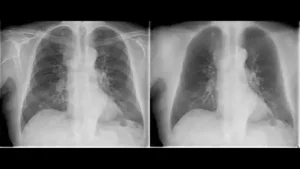

UNIQUE 2¹ – Next generation of rad image processing

UNIQUE 2 image processing delivers fast, outstanding digital rad images. It significantly improves image quality like homogeneous black backgrounds, reduced noise, and automatic enhancement of small details.

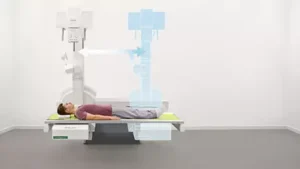

Stitching – Full leg and full spine imaging

The optional automatic image stitching software allows to acquire long-length images. Image acquisition is possible on the table in every position from horizontal to upright¹ and at the vertical stand. The algorithm works fully automatically. A set of smart accessories provides excellent patient comfort and superb image quality.

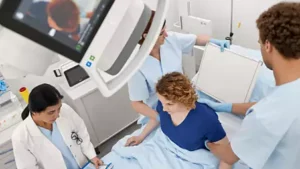

SkyPlates – Detectors that deliver

CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow comfortable positioning at the system. They pair nicely with our SkyFlow Plus intelligent software for non-grid bedside exams and can be shared between compatible systems.

SkyFlow Plus – Grid-like contrast for free rad examinations

SkyFlow Plus is the industry’s first scatter radiation correction algorithm for portable X-rays. When doing DR exams without a grid, Philips SkyFlow Plus produces images with grid-like contrast. The software reduces the effect of scattered radiation for non-grid free exposures.

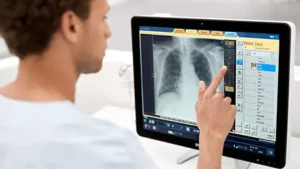

Eleva user interface – Quick, intuitive workflow

The intuitive Eleva user interface provides all the tools and controls necessary for seamless procedures. This common platform is harmonized across the Philips radiography and fluoroscopy portfolio. It is easy to learn and use and therefore reduces training effort.

Philips Bone Suppression¹ – Improved nodule detection

Philips Bone Suppression² software helps remove bone structures from adult erect chest images acquired at the vertical stand for an unobstructed view of soft tissue. This clear view can help to ensure a more accurate image interpretation. As part of Philips’ Eleva platform, Bone Suppression is integrated into the regular system workflow.

Specifications

Generator
Power	65 kW, 80kW optional
Tube voltage exposure	40 – 150 kV
Exposure techniques	Manual or Automatic Exposure Control kV-mA-s – Intelligent Exposure (IQX)
Tube voltage flouroscopy	40 – 125 kV
Fluoroscopy techniques	Continous, Pulsed fluoroscopy, Grid-controlled fluoroscopy (option)

Applicational Range
Fluoroscopy	Gastro intestinal, urinary studies, ERCP, fluoroscopy guided injections etc
Radiography	Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen etc

Geometry
Table tilt angle	-90°/+90°
Motorized compressor	3 kg – 15 kg (6.6 lbs – 33.1 lbs) compression force
Tube column movement range	160 cm (63″)
Source to Image Distance (SID)	113 cm – 183 cm (44″ to 72″)
Maximum patient weight	284 kg (626 lbs) without limitations
Table height	65 cm – 133 cm ( 25’’ – 52.2’’)

Tube: SRM 0608 ROT GS 505 (GCF)
Anode heat storage capacity	800 kHU (593kJ)
Focal spot	0.6 /0.8
Maximum voltage	125 kV (110 kV in GCF)

Tube: SRO 33100 ROT380 (PCF)
Anode heat storage capacity	300 kHU (200kJ)
Focal spot	0.6 /1.2
Maximum voltage	150 kV

Dynamic Flat Detector
Detector Size	43 cm x 43 cm (17″x17″)
Image matrix size	2,874 pixel x 2,840 pixel
Pixel size	148 µm
Acquisition mode PCF	Up to 6 fps
Acquisition mode GCF	Up to 30 fps

Tube: SRO 33100 ROT380 (for CS)
Anode heat storage capacity	300 kHU (200kJ)
Focal spot	0.6 /1.2
Maximum voltage	150 kV

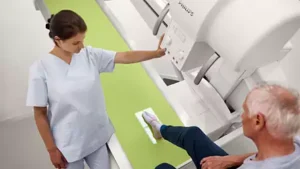

Eleva Tube Head
Control buttons	color coded control buttons; capacitive sensor for three-axis brake-release
Data displayed includes	Patient data, preview images, generator settings, live camera image (option)
Full color LCD touch display	30.7 cm (12.1″)

Wireless detector: SkyPlate Large
Type	Digital Csl (Cesium Iodide) flat detector
Detector size	35 cm x 43 cm (14″ x 17″)
Image matrix size	2330 x 2846 pixel
Active area	34.48 cm x 42.12 cm (13.6″ x 16.6″)

Wireless detector: SkyPlate Small
Image matrix size	1500 x 1920 pixel
Active area	22.2 cm x 28.4 cm (8.7″ x 11.2″)
Type	Digital Csl (Cesium Iodide) flat detector
Detector size	24 cm x 30 cm (app. 10″ x 12″)

Digital Vertical Stand
Detector Size	Fixed 43×43 cm (17″ x 17″), alternatively SkyPlate 35×43 cm (14″ x 17″)
Motorized tilting	Optional, -20° to +90°
Vertical travel	30 cm – 180 cm (11.8″ – 5’11”)
